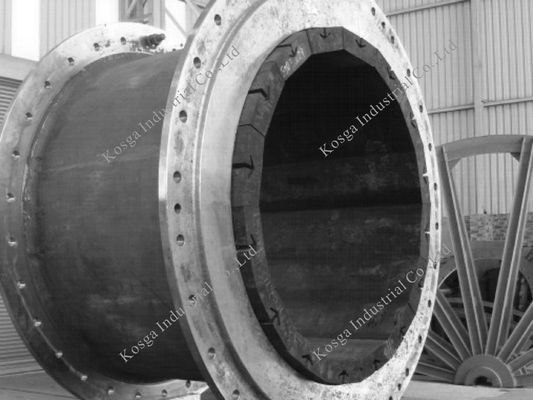

Mill Trunnion Liner
| Place of Origin | CHINA |
|---|---|
| Brand Name | KOSGA |
| Certification | ISO9001 |
| Model Number | KOSGA-RM |
| Minimum Order Quantity | 100KG |
| Price | 5 USD |
| Packaging Details | Wooden box or pallet |
| Delivery Time | 30 work days |
| Payment Terms | T/T |
| Supply Ability | 100 Set/Sets per Month |
Product Details
Product Description
Kosga mill trunnion liners are custom-made to protect your mill trunnions from internal wear. Fit is critical, and our mill trunnion liners can be made to almost any size or shape. Typical design features include internal spirals or dams to control material flow, flanges for the mounting of trommel screens, inclusion of threaded holes for jacking screws, inspection ports, etc. Kosga mill trunnion liners are grouped into three categories; One-Piece, Replaceable Sleeve and Bolted Wear Elements.
The Kosga mill trunnion liner upgrade offers an improved multi-piece mill trunnion liner configuration replacing the older one-piece mill trunnion liners, improving durability and serviceability of the mill feed and discharge ends.
Mill trunnion liners feature a rubber-lined fabricated steel base, which is then rubber lined. Loose steel-backed rubber liners are also used in larger trunnion and bell mouth linings.
1. Composite mill trunnion liner has smooth surface and is fixed on the mill end cover with bolts.
2. It can effectively protect end cover from abrasion of grinding machine and materials.
3. With rubber being used, anti-wear composite liner can be used for a long time.
4. Composite mill trunnion liner has stable and reliable performance. Because the company has a domestic first-class professional research and development team of fluid mechanics, mechanical design and rubber technology. Besides, the company also invites renowned experts of a number of industries as technical advisers.
Installation Method
1. Pin with a lifter the pressure-bearing part in the connection place of two adjacent composite mill trunnion liners.
2. Put fasteners into the trough of lifter bar and then tighten them so that the anti-wear composite liner is installed.
3. Put clamping part into the trough as well to make the combination between composite mill trunnion liner and lifter bar closer. Thus, liners can be firmly installed on the mill end cover.
Uses:
All types wet mill
Main Advantages:
Replacement convenience
Replacement convenience
Meet specific mill requirements
Complete product series
Long wear life
